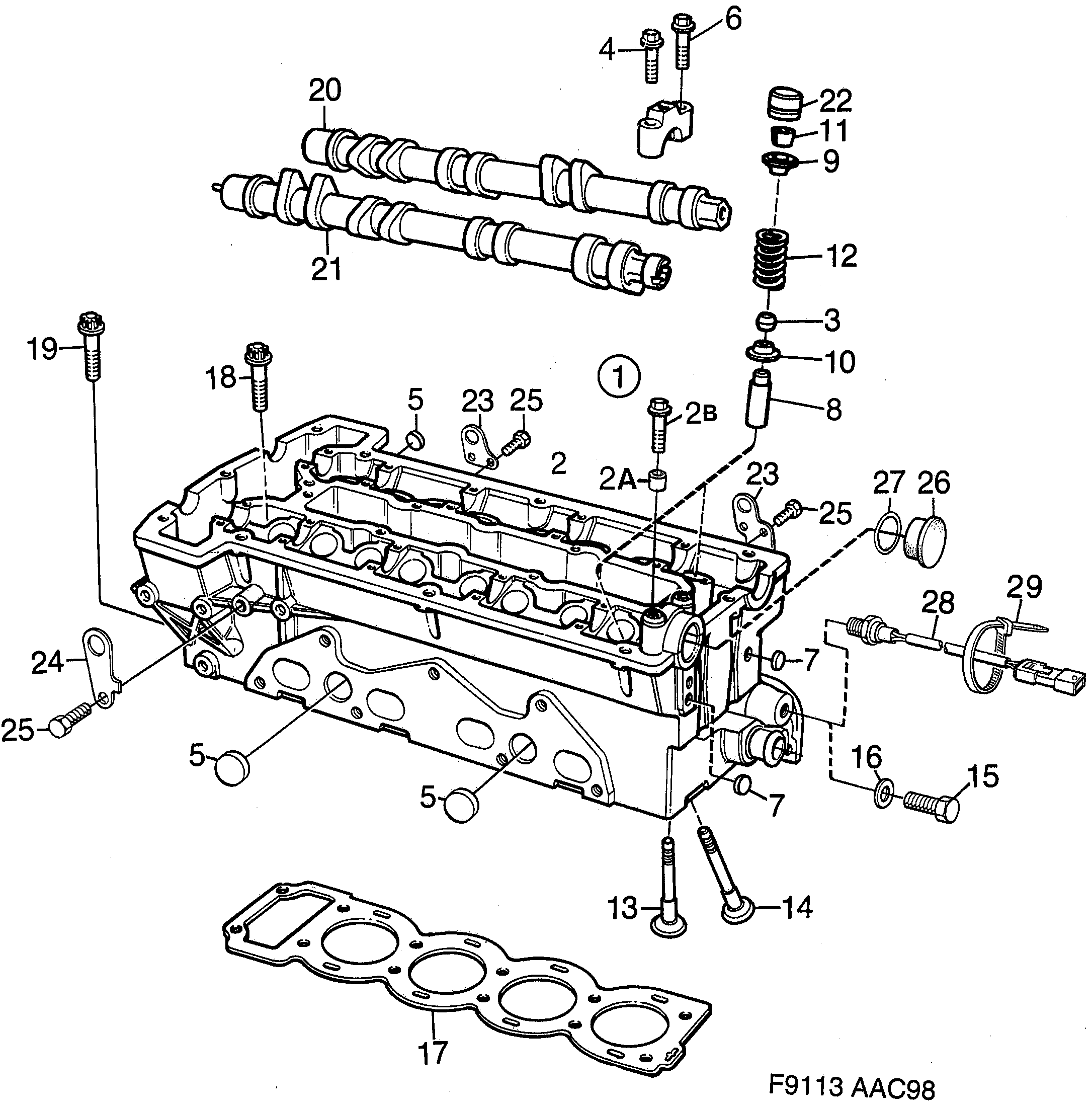

Group 2 Engine, section 160
| Pos | Article | Part No. |
|---|---|---|
| 1 | Cylinder head | 9185471 (replaces 9182304) |
| 2 | Cylinder head | 9549379 (replaces 9185208) |
| 2A | Guide sleeve | 7504566 |
| 2B | Screw | 92151833 (replaces 7504178) |
| 3 | Seal | 7500713 |
| 4 | Screw | 55559477 (replaces 7585847) |
| 5 | Sealing washer | 7588320 |
| 6 | Screw | 11900368 (replaces 4087805) |
| 7 | Plug | 4940466 |
| 8 | Valve guide | 9185612 |
| 9 | Washer | 7501349 |
| 10 | Washer | 7505134 |
| 11 | Valve cone | 7515547 |
| 12 | Spring | 9129651 |
| 13 | Exhaust valve | 9165598 |
| 14 | Inlet valve | 30546916 (replaces 9165580) |
| 15 | Plug | 7563042 (replaces 8123721) |
| 15 | Plug | 5125232 |
| 16 | Seal | 4161162 (replaces 8326712) |
| 17 | Gasket | 9185695 |
| 18 | Screw | 5955794 |
| 19 | Hexagon screw | 11900367 (replaces 7978216) |
| 20 | Camshaft | 30551897 |
| 20 | Camshaft | 30551899 (replaces 9145657) |
| 21 | Camshaft | 9145640 |
| 21 | Camshaft | 30551900 (replaces 9145665) |
| 22 | Valve lifter | 55557388 (replaces 9186073) |
| 23 | Lifting eye | 32000435 (replaces 9174913) |
| 24 | Lifting eye | 9137472 |
| 25 | Screw | 55566034 (replaces 7978190) |
| 26 | Sealing plug | 9135211 |
| 27 | O-ring | 9176470 (replaces 7519143) |
| 28 | Engine coolant temperature sensor | 9182205 |
| 29 | Tie strap | 7971872 |
| Gasket kit | 8822033 |
