Saab 9-3 (9400) 1998-2003 APC system

Group 2 Engine, section 1450

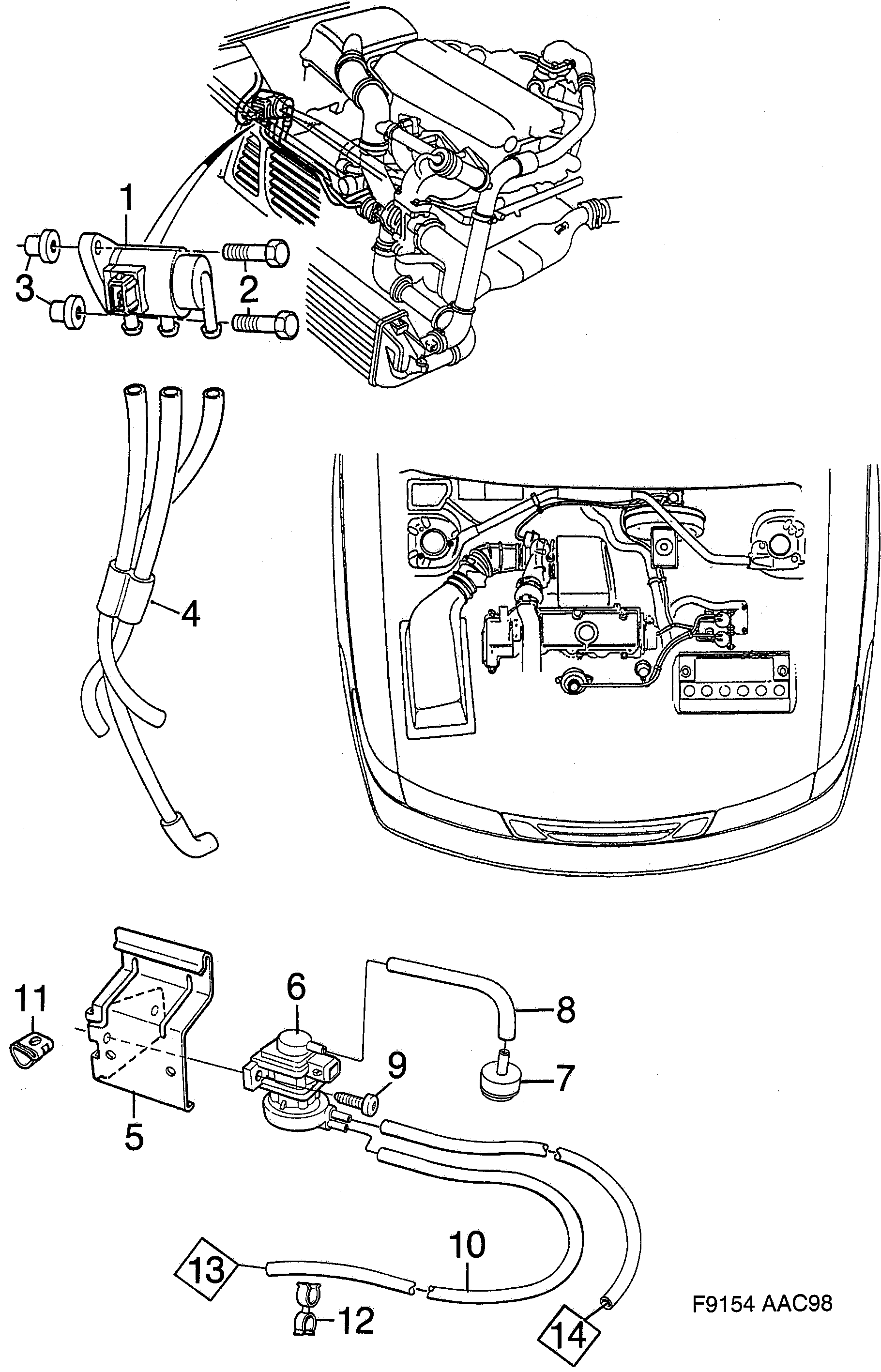

Saab 9-3 (9400) APC system diagram

Pos	Article	Part No.
1	Boost pressure control valve	7485576
2	Screw	8059420
3	Expanding nut	7973456
4	Vaccum hose	4443859
5	Bracket	4781605
6	Vacuum valve	9128022 (replaces 4782058)
7	Filter	90502861 (replaces 4678215)
8	Hose	90572322 (replaces 4503488)
9	Screw	92153219 (replaces 7922354)
10	Vaccum hose	5341755
11	Nut	9692849
12	Clamp	7398415
