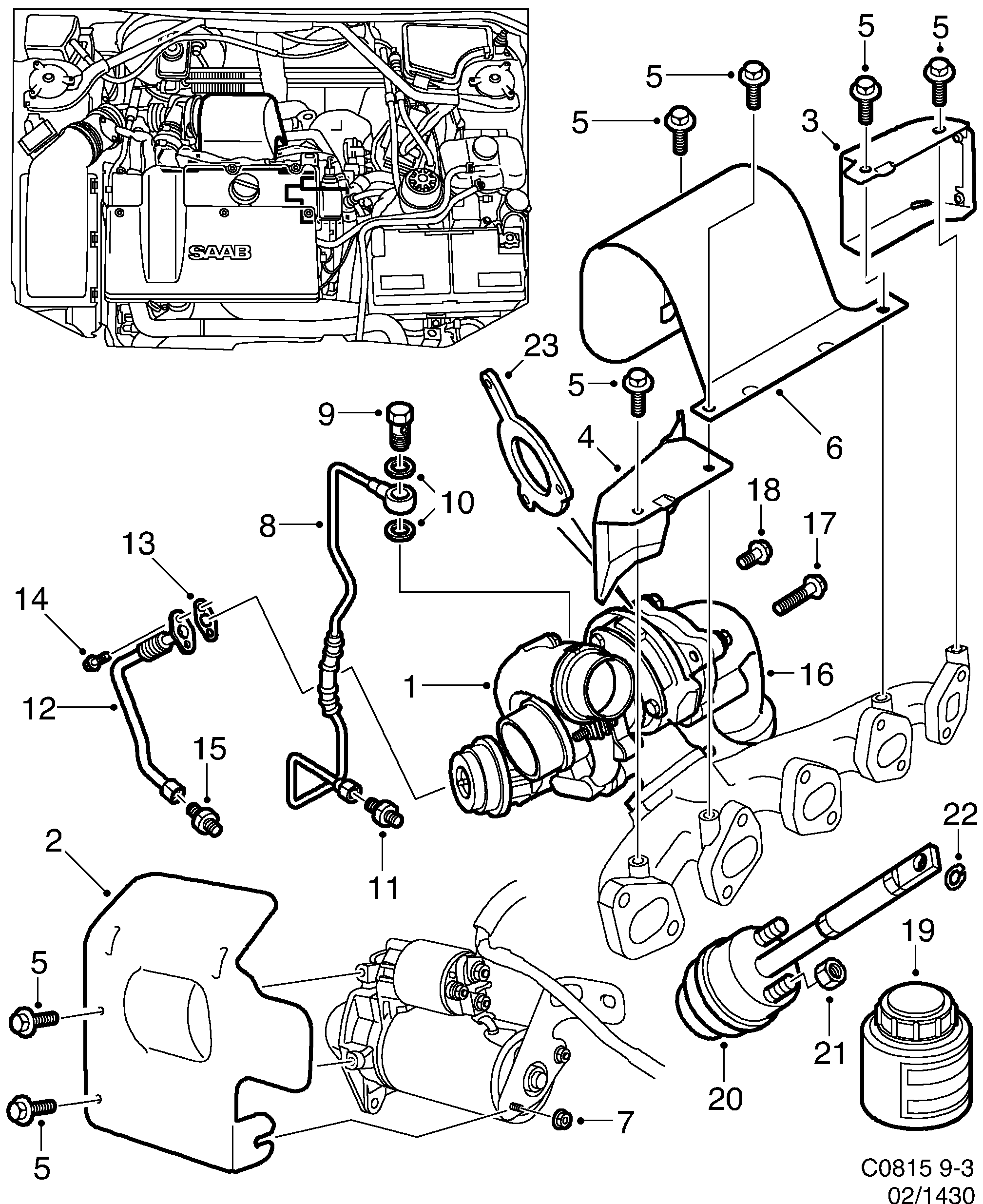

Group 2 Engine, section 1430
| Pos | Article | Part No. |
|---|---|---|
| 1 | Turbocharger | 90573533 (replaces 4773131) |
| 1 | Turbocharger | 24418170 (replaces 9543943) |
| 2 | Heat shield | 90530232 (replaces 4679247) |
| 3 | Heat shield | 4678736 |
| 3 | Heat shield | 24444259 (replaces 5340500) |
| 4 | Heat shield | 4678710 |
| 4 | Heat shield | 24422981 (replaces 5194691) |
| 5 | Screw | 11900353 (replaces 7978091) |
| 5 | Screw | 92153215 (replaces 7979610) |
| 6 | Heat shield | 4898995 |
| 6 | Heat shield | 55352686 (replaces 5194683) |
| 7 | Nut | 11900451 (replaces 7977929) |
| 8 | Tube | 90530858 (replaces 4773305) |
| 8 | Tube | 9202544 (replaces 9544131) |
| 9 | Banjo screw | 11092351 (replaces 9544149) |
| 10 | Seal | 11056391 (replaces 9544156) |
| 11 | Nipple | 24469868 (replaces 9544115) |
| 12 | Tube | 90500930 (replaces 4773107) |
| 13 | Gasket | 90467805 (replaces 9193541) |
| 14 | Screw | 11093963 (replaces 9543968) |
| 15 | Nipple | 90502912 (replaces 9544123) |
| 16 | Elbow pipe | 90500938 (replaces 4773271) |
| 16 | Elbow pipe | 9202449 (replaces 9544164) |
| 17 | Screw | 11096001 (replaces 9543976) |
| 18 | Screw | 11094892 (replaces 9544172) |
| 19 | Flange sealant | 90513210 (replaces 4773065) |
| 20 | Vaccum box | 4773248 |
| 21 | Nut | 4773115 |
| 22 | Snap ring | 90543634 (replaces 4773123) |
| 23 | Gasket | 9226145 (replaces 9544180) |
