Saab 9-3 (9400) 1998-2000 Turbocharger

Group 2 Engine, section 1420

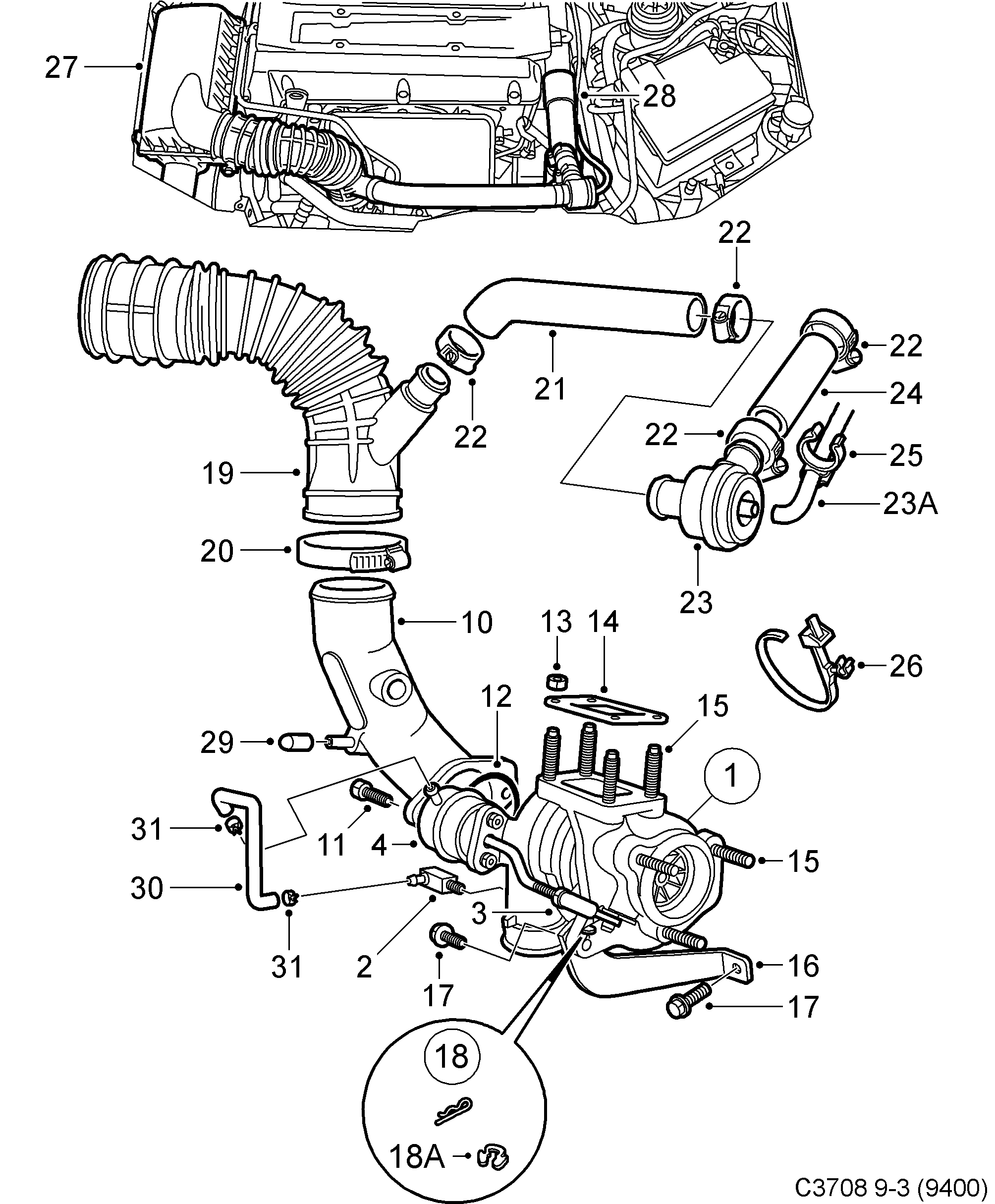

Saab 9-3 (9400) Turbocharger diagram

Pos	Article	Part No.
1	Turbocharger	30584575 (replaces 9146010)
1	Turbocharger	30584575 (replaces 9198318)
1	Turbocharger	30584735 (replaces 9185372)
1	Turbocharger	30584735 (replaces 9198326)
2	Nipple	9169517
3	Nut	9169426
4	Wastegate	9169434
4	Wastegate	32000439 (replaces 9185380)
10	Tube	93196943 (replaces 9180480)
11	Screw	11900355 (replaces 7978117)
12	O-ring	30551930 (replaces 9147844)
12	O-ring	90490362
13	Nut	30520445 (replaces 9116674)
14	Gasket	9113937
15	Screw	90490326 (replaces 9357138)
16	Brace	9146150
17	Screw	7978075 (replaces 8059768)
18	Sealing kit	9185489
18A	Retaining ring	9542416
19	Hose	4228532
20	Hose clamp	92153079 (replaces 7970148)
21	Hose	4444253
22	Hose clamp	7970098
23	Charge air bypass valve	4441895 (replaces 4391157)
23	By-pass valve	4441895
23A	Vaccum hose	9136243
24	Hose	4444261
25	Clamp	7398407
26	Tie strap	7398977
29	Plug	30580035 (replaces 9192394)
30	Hose	9189010
31	Hose clamp	7973605
