Saab 9-3 (9400) 1998-2003 Accelerator control

Group 2 Engine, section 1390

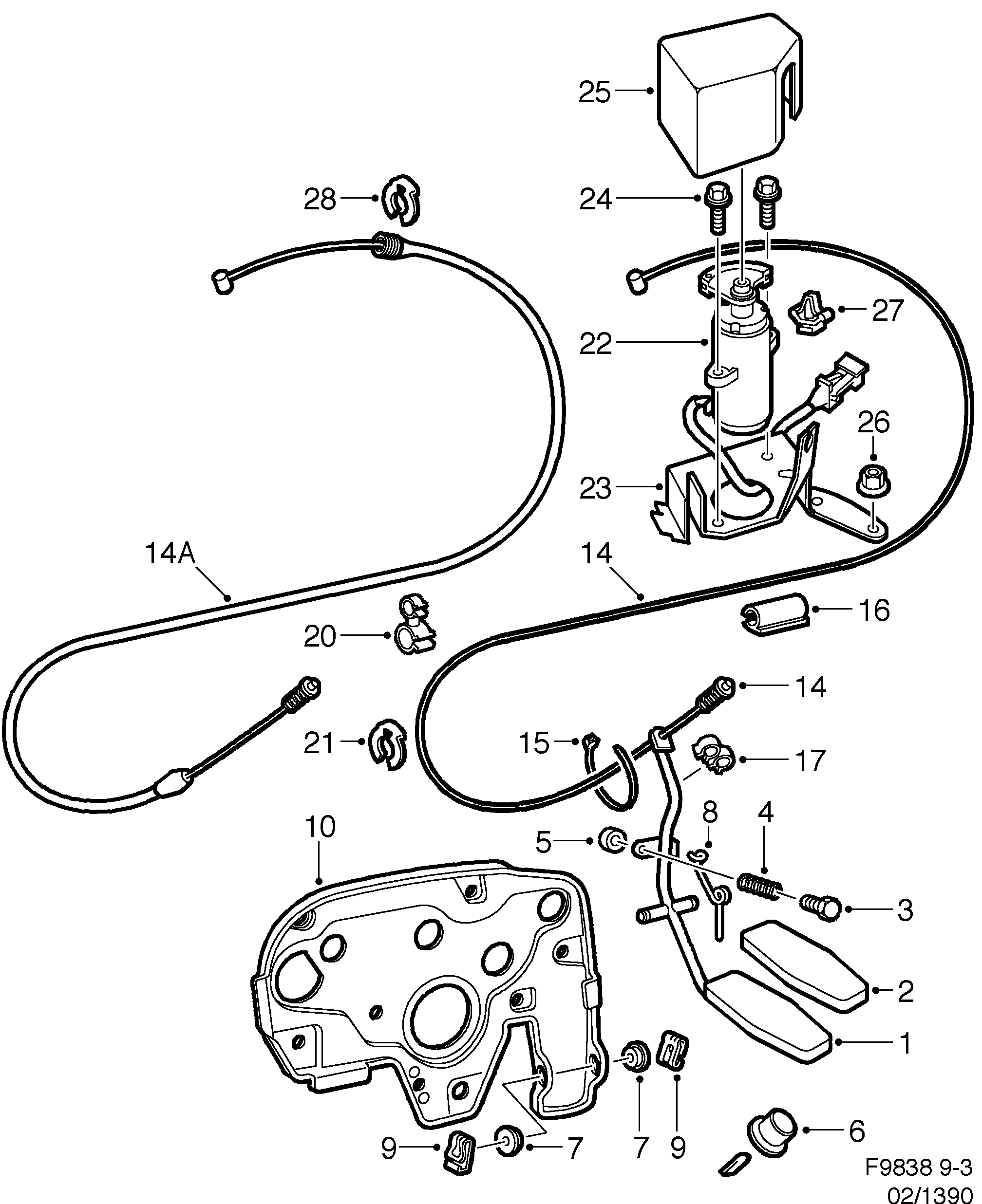

Saab 9-3 (9400) Accelerator control diagram

Pos	Article	Part No.
1	Accelerator arm	90410179 (replaces 4244687)
1	Accelerator arm	4242004
2	Pedal pad	4244679
2	Pedal pad	4241998
3	Screw	4345815
4	Compression spring	90076107 (replaces 4241972)
5	Rubber stop	9292075 (replaces 4241956)
6	Rubber stop	4373759
6	Rubber stop	4373767
7	Bearing washer	4242079
8	Return spring	4399564
9	Clip	90278102 (replaces 4345443)
14	Cable	4444121
14	Cable	4444139
14	Cable	4228912
14	Cable	4444006
14	Cable	4671723
14	Cable	4671939
14A	Cable	4725354
15	Tie strap	11900513 (replaces 92150191)
16	Clamp	7951783
17	Clamp	7398464
20	Clamp	7539984
21	Lock ring	4227823
22	Pedal sensor	4660122
22	Pedal sensor	5166293
23	Bracket	4780664
24	Screw	11900354 (replaces 7978109)
25	Cover	4780672
26	Plastic nut	92152035 (replaces 4087128)
27	Clip	4176095
28	Lock ring	4685053
