Saab 9-3 (9400) 1998-2002 Intercooler

Group 2 Engine, section 1240

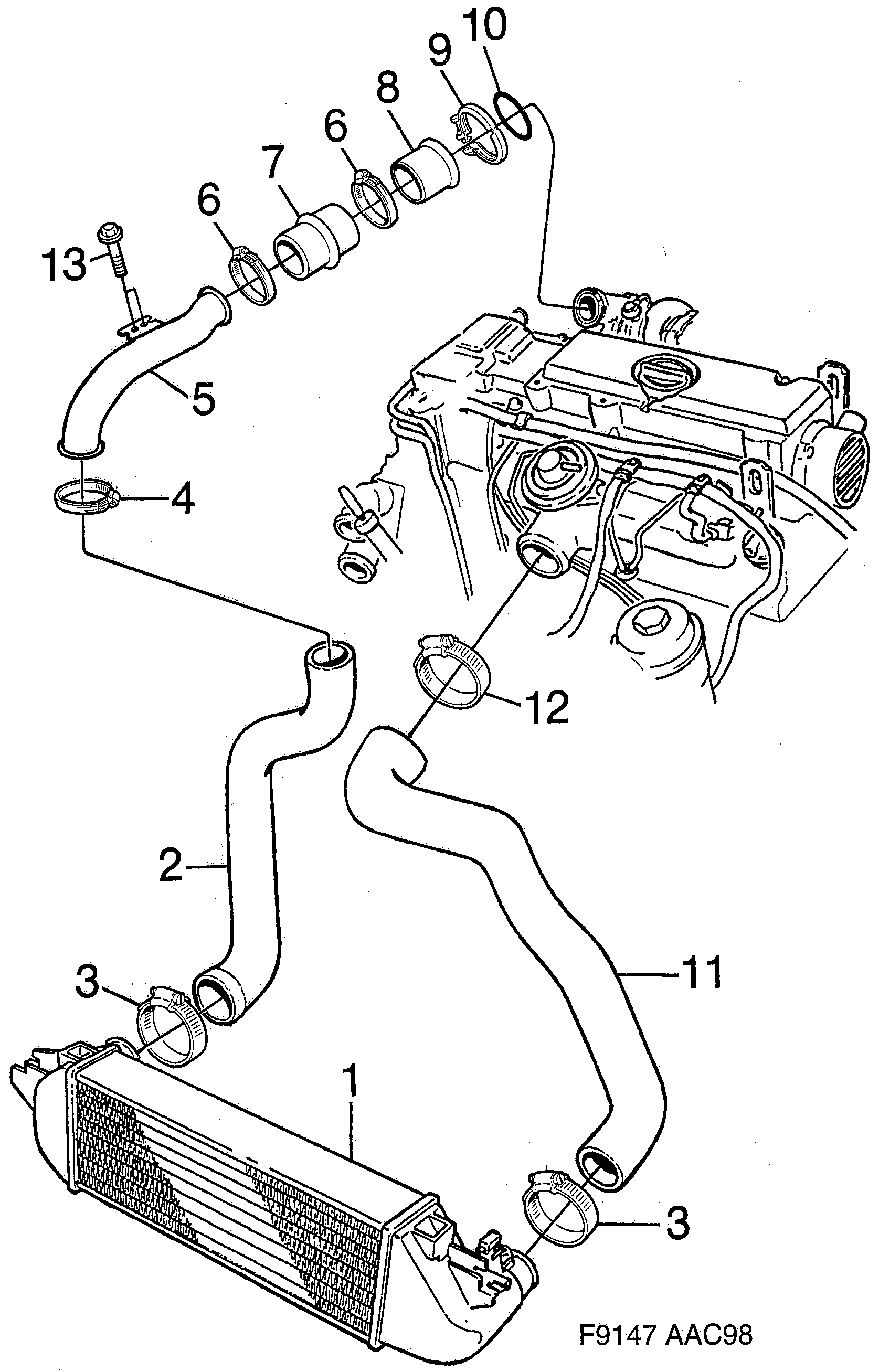

Saab 9-3 (9400) Intercooler diagram

Pos	Article	Part No.
1	Charge air cooler	4729521
2	Hose	5325626 (replaces 4877577)
2	Hose	5325626
3	Hose clamp	92153079 (replaces 7970148)
3	Hose clamp	92153077 (replaces 7970130)
4	Hose clamp	7970122
5	Tube	4876710
6	Hose clamp	11083891 (replaces 4348371)
7	Hose	5329008 (replaces 4876728)
7	Hose	5329008 (replaces 5325584)
7	Hose	5329008
8	Hose	4876736
9	Clamp	4877403
10	O-ring	4963989
11	Hose	5325618 (replaces 4877585)
11	Hose	5325618
11	Hose	5336128
13	Screw	92151821 (replaces 8059552)
