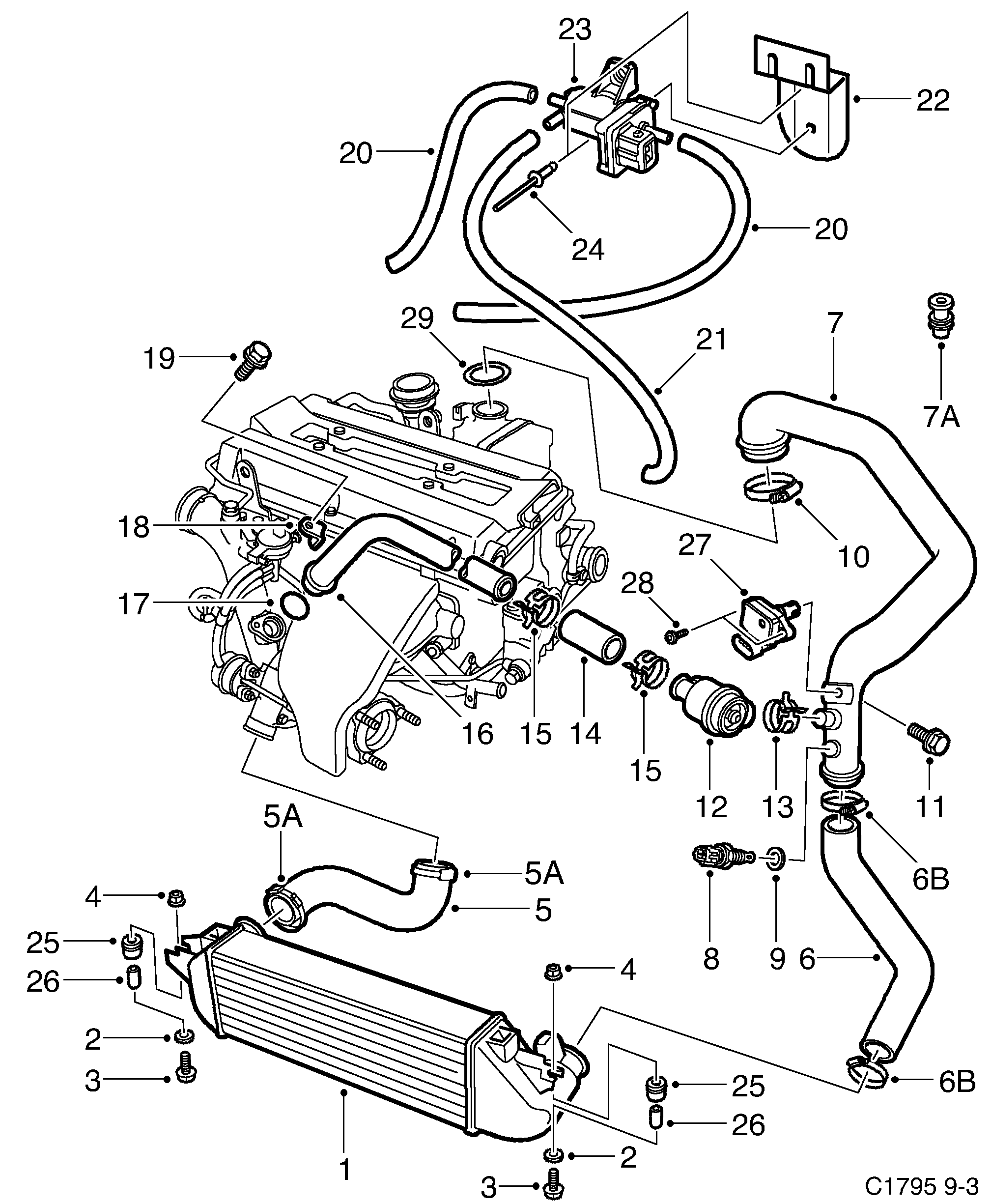

Group 2 Engine, section 1220
| Pos | Article | Part No. |
|---|---|---|
| 1 | Charge air cooler | 4729521 |
| 2 | Washer | 7987506 (replaces 7975469) |
| 3 | Hexagon screw | 7978158 |
| 4 | Rivet nut | 9130829 (replaces 7399454) |
| 5 | Hose | 4879086 (replaces 4876132) |
| 5 | Hose | 4879086 |
| 5A | Hose clamp | 92153077 (replaces 7970130) |
| 5A | Hose clamp | 92153079 (replaces 7970148) |
| 5A | Hose clamp | 7987449 |
| 6 | Hose | 5195805 (replaces 4876140) |
| 6 | Hose | 5195805 (replaces 5195714) |
| 6 | Hose | 5195805 |
| 7 | Charge air pipe | 4753828 |
| 7 | Charge air pipe | 5191770 |
| 7A | Nipple | 55557389 (replaces 9179318) |
| 8 | Intake air temperature sensor | 9174442 |
| 9 | Washer | 4161261 |
| 10 | Hose clamp | 4940144 |
| 11 | Screw | 55566034 (replaces 7978190) |
| 12 | By-pass valve | 4441895 |
| 13 | Hose clamp | 90572594 (replaces 4576609) |
| 13 | Hose clamp | 4966792 |
| 14 | Hose | 7591936 |
| 15 | Hose clamp | 90571576 (replaces 4576617) |
| 15 | Hose clamp | 4940318 |
| 16 | Tube | 4753869 |
| 17 | O-ring | 7987415 (replaces 7985781) |
| 17 | O-ring | 7987415 |
| 18 | Clamp | 4670352 |
| 19 | Screw | 11900353 (replaces 7978091) |
| 20 | Vaccum hose | 9136243 |
| 22 | Bracket | 4226098 |
| 23 | Vacuum valve | 55562854 (replaces 9189002) |
| 24 | Rivet | 92153060 (replaces 7972516) |
| 25 | Rubber bushing | 7543762 |
| 26 | Spacer tube | 7544356 |
| 27 | Sensor | 55563262 (replaces 9197948) |
| 28 | Screw | 7922370 |
| 29 | O-ring | 4940698 |
