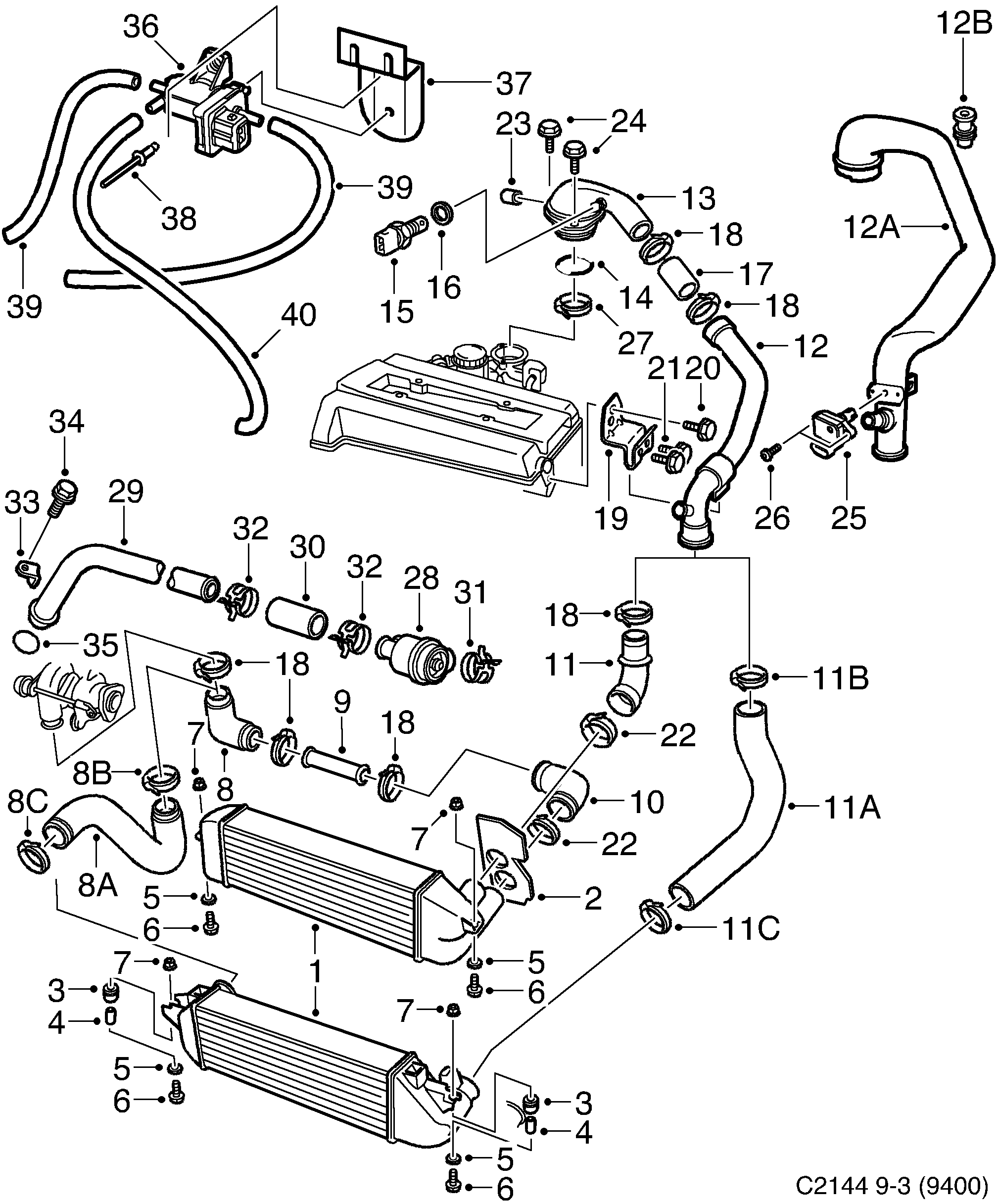

Saab 9-3 (9400) 1998-2003 Intercooler

Group 2 Engine, section 1210

Pos	Article	Part No.
1	Charge air cooler	4283552
1	Charge air cooler	4729521
2	Air shield	4283503
3	Rubber bushing	7543762
4	Spacer tube	7544356
5	Washer	7987506 (replaces 7975469)
6	Hexagon screw	7978158
7	Rivet nut	9130829 (replaces 7399454)
8	Hose	4235735
8	Hose	4901914
8A	Hose	4729950
8A	Hose	4879086 (replaces 4876132)
8A	Hose	4879086
8B	Hose clamp	92153079 (replaces 7970148)
8B	Hose clamp	7987449
8C	Hose clamp	92153077 (replaces 7970130)
9	Tube	4444279
10	Hose	4901906 (replaces 4235727)
10	Hose	4901906
11	Hose	4901898 (replaces 4228805)
11	Hose	4901898
11A	Hose	4729968
11A	Hose	5195805 (replaces 5195714)
11A	Hose	5195805
12	Pipe	5336516
12A	Charge air pipe	5191770
12B	Nipple	55557389 (replaces 9179318)
13	Pipe elbow	4228771
14	O-ring	4226833
14	O-ring	4940698
15	Intake air temperature sensor	9174442
16	Washer	4161261
17	Hose	4904702
19	Bracket	4226841
20	Screw	92150012 (replaces 7978182)
21	Screw	11900355 (replaces 7978117)
21	Screw	55566034 (replaces 7978190)
23	Bushing	4394318
25	Sensor	55563262 (replaces 9197948)
26	Screw	7922370
27	Hose clamp	4940144
28	By-pass valve	4441895
29	Tube	4753869
30	Hose	7591936
31	Hose clamp	4966792
32	Hose clamp	4940318
33	Clamp	4670352
34	Screw	11900353 (replaces 7978091)
35	O-ring	7987415 (replaces 7985781)
35	O-ring	7987415
36	Vacuum valve	55562854 (replaces 9189002)
37	Bracket	4226098
38	Rivet	92153060 (replaces 7972516)
39	Vaccum hose	9136243
