Saab 9-3 (9400) 1998-2002 Auxiliary heater Heater unit

Group 2 Engine, section 1140

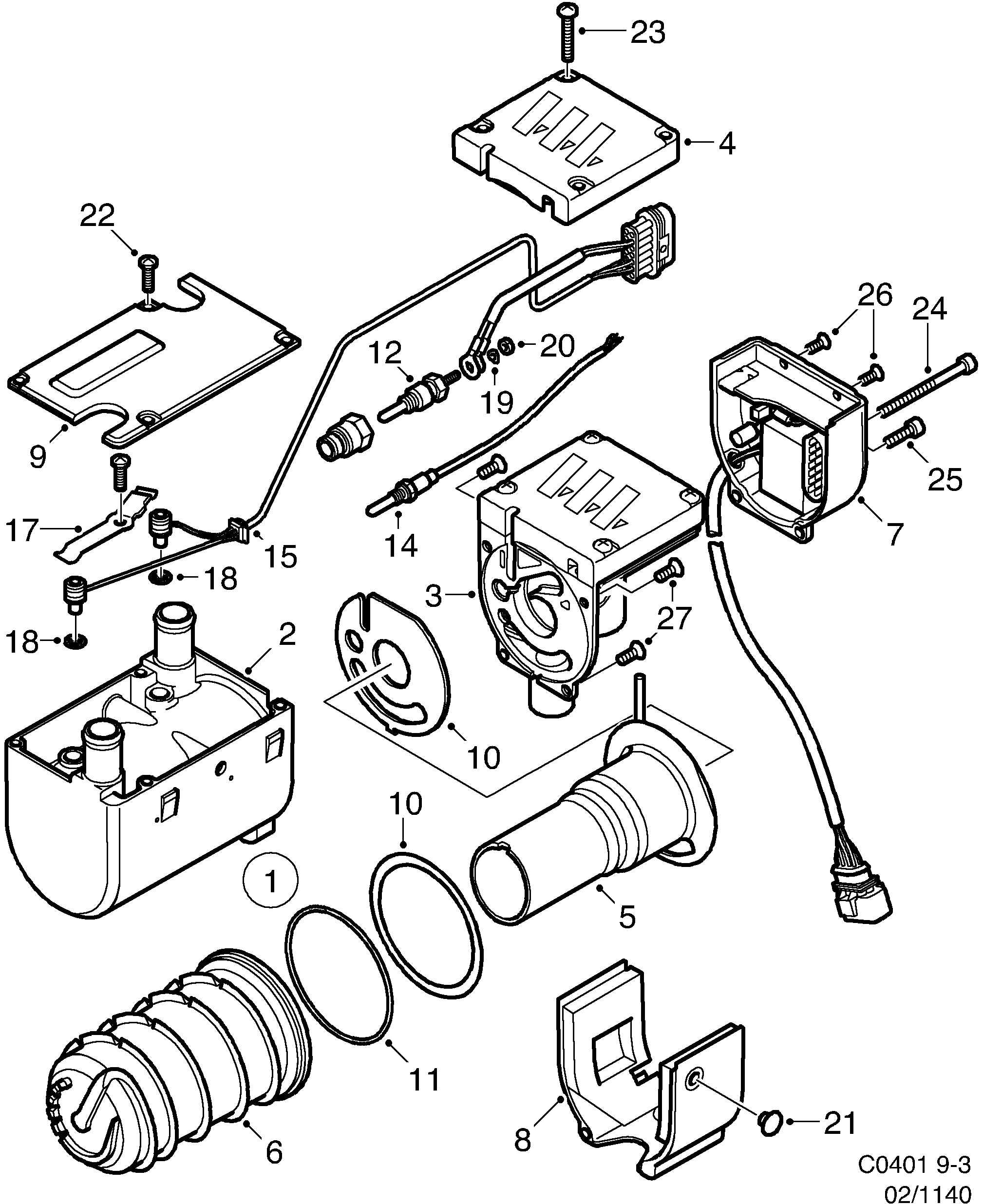

Saab 9-3 (9400) Auxiliary heater Heater unit diagram

Pos	Article	Part No.
1	Heater unit	4623302
2	Casing	400128195
3	Fan	4967071
4	Cover	5195128
5	Burner	4967097
6	Heat exchanger	400128237
7	Control unit	5195136
8	Cover	400128252
9	Cover	400128260
10	Gasket	93173004 (replaces 5463294)
11	O-ring	90541155 (replaces 400128286)
11	O-ring	90541155
12	Glow plug	400128294
14	Flame indicator	90544230 (replaces 5195144)
15	Cable harness	4967162
17	Brace	400128344
18	O-ring	93173067 (replaces 4967170)
19	Spring washer	5190921
20	Nut	5190939
21	Cover	400128351
22	Screw	93173060 (replaces 5190947)
22	Screw	93173060
23	Screw	93173065 (replaces 4967196)
23	Screw	93173065
24	Screw	93173062 (replaces 4967204)
24	Screw	93173062
25	Screw	93173064 (replaces 4967212)
25	Screw	93173064
26	Screw	93173063 (replaces 4967220)
26	Screw	93173063
27	Screw	93173061 (replaces 5190954)
27	Screw	93173061
