Saab 9-3 (9400) 1998-2002 Auxiliary heater

Group 2 Engine, section 1130

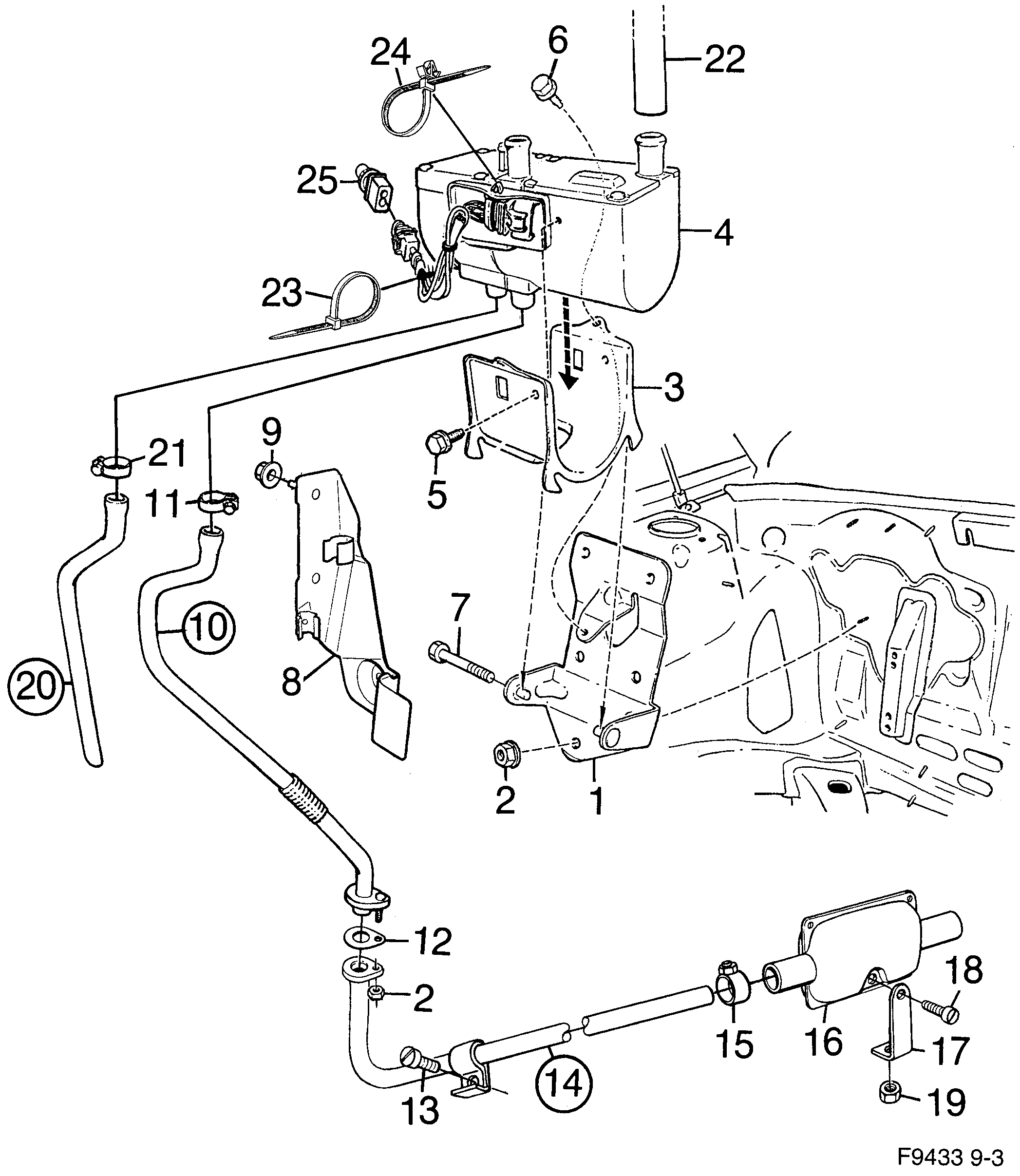

Saab 9-3 (9400) Auxiliary heater diagram

Pos	Article	Part No.
1	Bracket	4624771
1	Bracket	4624813
2	Nut	11900451 (replaces 7977929)
3	Bracket	4962197
3	Bracket	4624789
5	Screw	11900353 (replaces 7978091)
6	Screw	11900355 (replaces 7978117)
7	Hexagon screw	8022055
8	Bracket	4878369
8	Bracket	4878559
6	Plastic nut	92152035 (replaces 4087128)
10	Exhaust pipe	4751434
10	Exhaust pipe	4751483
11	Hose clamp	400109286 (replaces 4940433)
12	Gasket	4879227
13	Screw	7971294
14	Exhaust pipe	4876868
14	Exhaust pipe	5195367
15	Hose clamp	4940441
16	Muffler	400106936 (replaces 4623351)
17	Bracket	4876892
19	Nut	12802365 (replaces 4087664)
20	Inlet manifold	4623344
20	Inlet manifold	4624896
21	Clamp	4940425
23	Tie strap	7971864
24	Tie strap	9528019
25	Dummy socket	4942298
