Saab 9-3 (9400) 1998-2002 Cooling system

Group 2 Engine, section 1120

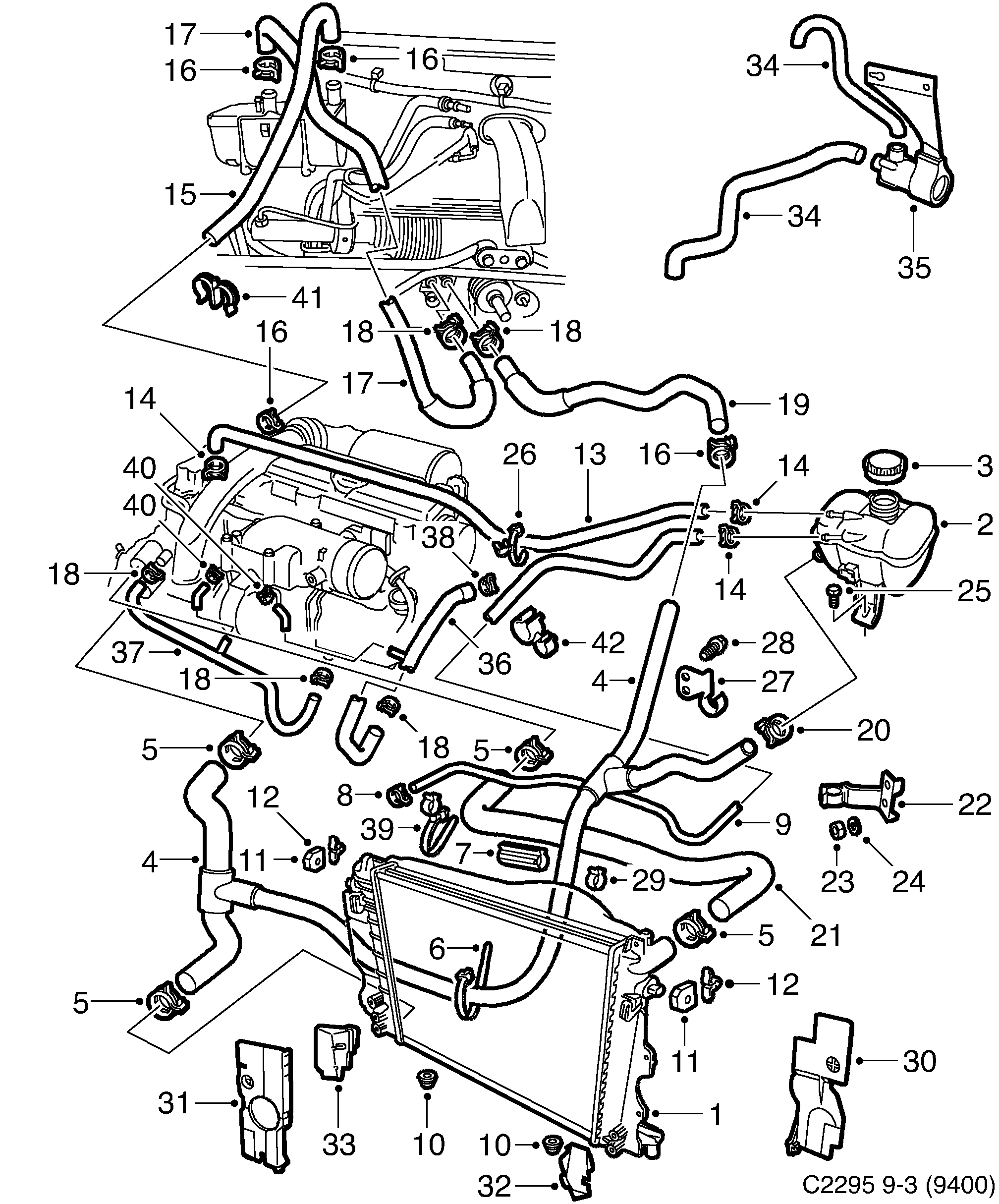

Saab 9-3 (9400) Cooling system diagram

Pos	Article	Part No.
1	Radiator	4729562
1	Radiator	4729588
2	Expansion tank	4283305
3	Cover	4395513
4	Radiator hose	4963435
5	Hose clamp	4940391
6	Tie strap	9528019
7	Clip	4940359
8	Hose clamp	90490543 (replaces 4940334)
9	Radiator hose	4396586
10	Rubber bushing	4727871
11	Rubber bushing	4727863
12	Clip	4283586
13	Radiator hose	4396594
13	Radiator hose	5194410
14	Hose clamp	4348231
15	Radiator hose	4396644
15	Radiator hose	4396727
15	Radiator hose	5196217
16	Hose clamp	4966792
17	Radiator hose	4396651
17	Radiator hose	4396735
18	Hose clamp	4940326
19	Radiator hose	4964243 (replaces 4726741)
19	Radiator hose	4964243
19	Radiator hose	4964250 (replaces 4726758)
19	Radiator hose	4964250
20	Hose clamp	4685947
21	Radiator hose	4960373
22	Bracket	4877759
23	Nut	8151243
23	Flange nut	92150135 (replaces 7984776)
24	Washer	8073108
25	Hexagon screw	7978661
26	Tie strap	11900513 (replaces 92150191)
27	Bracket	4727806
28	Screw	11900353 (replaces 7978091)
29	Clamp	11900515 (replaces 92150209)
30	Air shield	4729455
31	Air shield	4729463
32	Air shield	4728937
33	Air shield	4728945
36	Radiator hose	4898839
36	Radiator hose	5340286
37	Radiator hose	4961587
37	Radiator hose	5340294
38	Hose clamp	90467195 (replaces 4960621)
39	Clip	5194865
40	Hose clamp	90469888 (replaces 4620365)
41	Clamp	5125356
42	Clamp	7539984
