Saab 9-3 (9400) 1998-2003 Cooling system

Group 2 Engine, section 1090

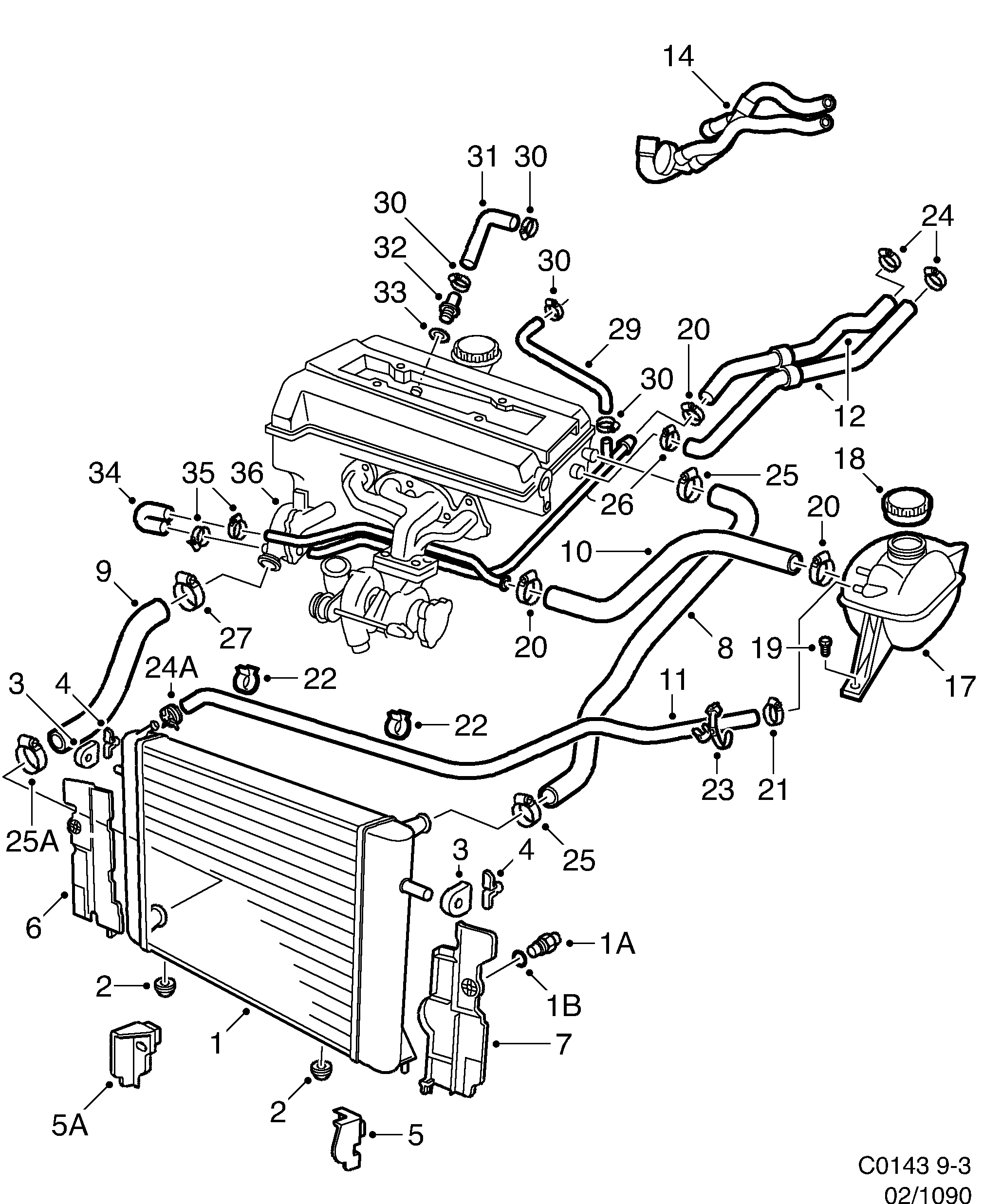

Saab 9-3 (9400) Cooling system diagram

Pos	Article	Part No.
1	Radiator	4729554
1	Radiator	4729562
1	Radiator	4729570
1	Radiator	4729596
1A	Draining plug	4356408
1B	O-ring	4356416
2	Rubber bushing	4727871
3	Rubber bushing	4727863
4	Clip	4283586
5	Air shield	4728937
5A	Air shield	4728945
6	Air shield	4729463
7	Air shield	4729455
8	Radiator hose	4964789 (replaces 4876207)
8	Radiator hose	4964789
9	Radiator hose	4963872 (replaces 4729513)
9	Radiator hose	4963872
10	Radiator hose	4961363 (replaces 4876595)
10	Radiator hose	4961363
11	Radiator hose	4876603
12	Radiator hose	4961074 (replaces 4876223)
12	Radiator hose kit	4961074
12	Radiator hose	4961090 (replaces 4876256)
12	Radiator hose kit	4961090
14	Radiator hose kit	4961116 (replaces 4876413)
14	Radiator hose kit	4961116
14	Radiator hose kit	4961132 (replaces 4876470)
14	Radiator hose kit	4961132
17	Expansion tank	4356382
17	Expansion tank	4356390
18	Cover	4395513
19	Hexagon screw	7978661
20	Hose clamp	4685947
21	Hose clamp	4348231
22	Clamp	11900515 (replaces 92150209)
23	Clamp	7539984
24	Hose clamp	4940326
24A	Hose clamp	90490543 (replaces 4940334)
25	Hose clamp	7970106
25A	Hose clamp	13136147
26	Hose clamp	4940318
27	Hose clamp	90490542
29	Hose	9149071
29	Hose	55558930 (replaces 9186883)
31	Hose	9138587
32	Nipple	7486806
33	Seal	4161162 (replaces 8326712)
34	Hose	55558952 (replaces 9178849)
